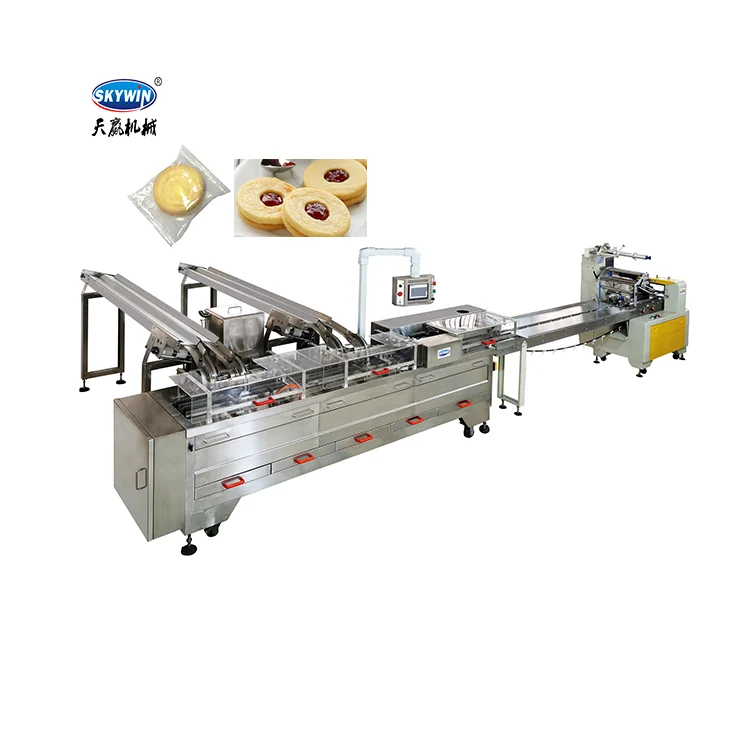

Skywin Biscuit Cream Sandwich Biscuit Machine connect sk530s flow packing machine
This machine is suitable for chocolate, cream and Jam flavor biscuit sandwiching and flow packing.
capacity from 500~1200pc/minute sandwiched biscuit.
Sandwich biscuit machine can make one color 2+1,3+2 sandwich bisucit with cream ,jam ,chocolate and so on .
We can make single row ,two rows ,four rows ,six rows ,high speed sandwich biscuit machine by advance structure&design
Just according to customer special requirement .
Advanced Technology
Technical Parameter:
| | Single Lane Sandwiching Machine | Two Lane Sandwiching Machine |
| biscuit size | Square | Rectangle |
| L(35-70)x W(30-60)x H(3-8)mm | L (35-80) x W(40-65)mm |
| Round | Round |
| Φ35-70mm thickness:3-8mm | Φ35-Φ65mm thickness:4-8mm |
| Capacity | 100-600 sandwiches/min | 600-1200 sandwiches/min |
| operating voltage | single-phase AC 220V 50Hz | single-phase AC 220V 50Hz |
| machine size | 7000x1900x1470mm | 7430x3300x1500mm |
| Weight(Cream tanks capacity ) | 1120kgs (40L) | 1350kgs (50L) |
| total power | 4Kw | 4Kw |
- SKYWIN Food Machinery Group Company was Founded in 2010,which is lotated in Beijiao, Shunde, Foshan, Guangdong, CHINA
- Foshan City is stainless steel Birthplace.
- Skywin Group has two factories, One is for Large Biscuit & Cookies & Wafer Production Line, One is for Automatic Biscuit Sandwiching Machine with Packing System.
- We have more than 60 professional staffs to match delivery time, base on “International Quality, Competitive Price”.
- We insist on:
Premium Quality Standards
High Value for Money
Lasting Partnership
Technical Monopoly Protect
After Sales Dependability
We have three connection options:
1.Sandwich biscuit machine connected packing machine (with pillow packing or trayless on edge packing)
2.Sandwich biscuit machine connected with star wheel stacker
3.Sandwich biscuit machine connected with multiplier
Main Features:
(1). PLC for simple operation including machine set-up, hopper controls, speed adjustments
(2). Removable scrap trays are provided for simple scrap collection and machine cleaning
(3). Easy to operate: Simple adjustments for machine speeds, cream volume
(4). Sanitary design with stainless steel for food contact parts, including cream stencil and interchange faster
(5). Separating cream holding tank and feeding system
(6). The pusher with double chain assure machine running stable and cleaning and maintenance
(7).Every cream hopper with independent motor and reducer
(8).Mobile cream hopper can cleaning while finish working separately
(9)SUS304 stainless gear pump, connection tubes between cream hopper and stencil are jacket design.
(10) Temperature metering device installed the cream stencil and convenient change-over stencil design for different cream shapes
Sandwich biscuit machine with multiplier
Sandwich biscuit machine with trayless on edge packing
